Oa Framework - Xml Publisher Integration for R12

Sunday, 30 October 2011 09:36 Dakshesh Patel

Business Requirement : When User require report output from jsp/Oa framework page then They have to Run

concurrent program which is very tedious process for users and if user wants output in Excel/PDF/Word and in many other formats then they have to run concurrent program again and again for each different type of output file.

So Business requirement is that report output should be retrieved from Oa framework Page Just by single Button Click For Different Type Of Formats.

Sample Output :-

Solution : Creating Oa framework Report and Showing output of Report in Different Format We have to integrate oa framework and Xml Publisher.

For this solution first you have to create Oa framework page, Data Template and Data definition.

STEPS:-

Open Jdeveloper and create new project “oareport”.

Create view object using below query.

Field	Value
Package	oareport.oracle.apps.ak.server
Name	EmpVO

Query:

select employee_number,full_name,hr_general.decode_lookup('SEX',sex)sex,hr_general.decode_lookup('NATIONALITY',nationality)nationality from per_all_people_f
where trunc(sysdate) between effective_start_date and effective_end_date
and current_employee_flag='Y'
and rownum =1

Create Application Module.

Field	Value
Package	oareport.oracle.apps.ak.server
Name	XMLIntegrationAM

Click on Edit Application module on “XMLIntegrationAM” and move “EmpVO” to right side.

Right Click on Project and Create new oa component -> Page.

Field	Value
Package	oareport.oracle.apps.ak.webui
Name	XMLIntegrationPG

go to Structure of page -> Page Layout region and set Below Property

Field	Value
ID	MainRN
AM Definations	oareport.oracle.apps.ak.server.XMLIntegrationAM
Window Title	Welcome Page

Right Click on MainRN and click on Set new Controller Class.

Field	Value
Package Name	oareport.oracle.apps.ak.webui
Class	XMLIntegrationCO

Go to Controller and Add below code in processRequest of XMLIntegrationCO.java

public void processRequest(OAPageContext pageContext, OAWebBean webBean)
{
   super.processRequest(pageContext, webBean);
   OAApplicationModule am= pageContext.getApplicationModule(webBean);
   am.invokeMethod("getEmpDataXML");

}

Go to structure of Application module XMLIntegrationAM and open XMLIntegrationAMImpl.java file and add below method in File.

   public void getEmpDataXML()
{
   try
   {
     ByteArrayOutputStream outputStream = new ByteArrayOutputStream();
     OAViewObject vo = (OAViewObject)findViewObject("EmpVO1");
     ((XMLNode)vo.writeXML(4,
                           XMLInterface.XML_OPT_ALL_ROWS)).print(outputStream);
     System.out.println(outputStream.toString());
   } catch (Exception e)
   {
     throw new OAException(e.getMessage() + "Custom Error");
   }
}

Right Click on XMLIntegrationPG and click on Run.

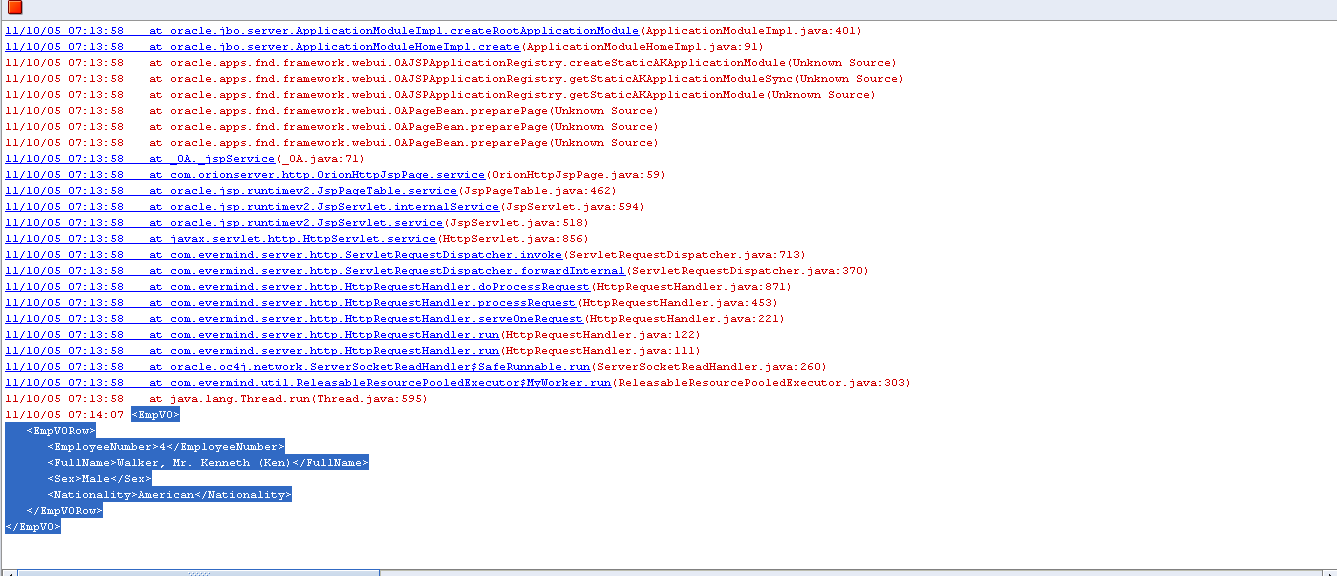

After completing loding of page Compiler Will Display below Output.

Save above xml content to file.

Xml File Name: EmpData.xml

<EmpVO>
  <EmpVORow>
     <EmployeeNumber>4</EmployeeNumber>
     <FullName>Walker, Mr. Kenneth (Ken)</FullName>
     <Sex>Male</Sex>
     <Nationality>American</Nationality>
  </EmpVORow>
</EmpVO>

Go to structure of XMLIntegrationPG and add pageButtonBar region .

Field	Value
ID	ButtonRN
Region Style	pageButtonBar

Right Click on ButtonRN and add 3 new items with below property.

Field	Value
ID	PrintWord
Item Style	SubmitButton
Prompt	Print Word

Field	Value
ID	PrintExcel
Item Style	SubmitButton
Prompt	Print Excel

Field	Value
ID	PrintPdf
Item Style	SubmitButton
Prompt	Print PDF

Right Click on MainRN in XMLIntegrationPG and add below new QueryRegion.

Field	Value
ID	QueryRN
Region Style	query
Construction	resultBasedSearch
Include Simple panel	true

Right Click on QueryRN and click Region using wizard and add new table region and add EmpVO in table.

Go to XMLIntegrationAM and change code of below method.

public XMLNode getEmpDataXML()
{
   try
   {

     OAViewObject vo = (OAViewObject)findViewObject("EmpVO1");
     XMLNode xmlNode = (XMLNode)vo.writeXML(4, XMLInterface.XML_OPT_ALL_ROWS);
     return xmlNode;
   } catch (Exception e)
   {
     throw new OAException(e.getMessage() + "Custom Error");
   }
}

Change controller class XMLIntegrationCO.java according to below Attached file.

Code : XMLIntegrationCO.java

Retrive $JAVA_TOP/oracle/apps/xdo Directory from server and place it in Jdeveloper because it is needed for some import.

Build Project and run XMLIntegrationPG but it will show blank output in output file on Clint machine but when you Deploy it to server and take output then it will show correct output.

create "oareport" directory on desktop from merging code of “myproject” and “my classes”.

Source Code : oareport.rar

Move "oareport" to $JAVA_TOP Directory.

Run below script to import oa framework page

java oracle.jrad.tools.xml.importer.XMLImporter $JAVA_TOP/oareport/oracle/apps/ak/webui/XMLIntegrationPG.xml -username APPS -password apps -dbconnection " (DESCRIPTION= (ADDRESS=(PROTOCOL=tcp) (HOST=192.168.1.200)(PORT=1521)) (CONNECT_DATA= (SID=vis) ) )" -rootdir $JAVA_TOP

Restart Server.

adoacorectl.sh stop
adoacorectl.sh start

adapcctl.sh stop
adapcctl.sh start

Create Data Definition.

Field	Value
Name	EmpDataDD
Application	Human Resources
Code	EmpDataDD
Start Date	Current Date

create Data Template

Name	EmpDataDT
Application	Human Resources
Type	RTF
Default File	EmpData.rtf
Default File Language	English
Code	EmpDataDT
Data Definition	EmpDataDD
Start Date	Current date
End Date
Sub template	No
Default File Territory
Default Output Type	PDF
Preview Format	PDF
File Name	EmpData.rtf
Language	English
RTF File	EmpData.rtf
XML File	EmpData.xml

create below form function.

Field	Value
Function	XX_EMPLOYEE_DETAILS_PAGE
User Function Name	XX_EMPLOYEE_DETAILS_PAGE
Type	SSWA jsp function
HTML Call	OA.jsp?page=/oareport/oracle/apps/ak/webui/XMLIntegrationPG

Attach function To below menu.

Field	Value
Function Name	XX_EMPLOYEE_DETAILS_PAGE
User Menu Name	Employee Detail Menu
Menu Name	XX_EMPLOYEE_DETAILS_MENU

Create below Responsibility and attach Below Menu.

Field	Value
Responsibility Name	Employee detail Responsibility
Responsibility Key	XX_EMPLOYEE_DETAIL_RESP
Menu name	Employee Detail Menu

Attach Responsibility to your user.

Click on Print Pdf .

Click on open It Will show Output in Pdf format.

Click on Print Word .

Click on open output will be shown in word format.

Search any employee number and click on print Excel.

Click on open output will show record for one Employee.
